Lamp, Courtesy - CUPHOLDER, Accent: Removal

GC0177653Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

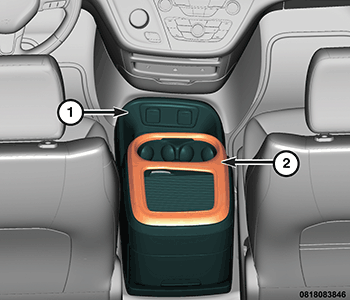

  2. Using trim stick C-4755 or equivalent, gently pry the upper console bezel (2) from the console (1).
    GC0177366Courtesy of CHRYSLER GROUP, LLC

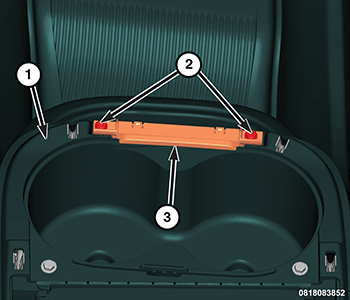

  3. Remove the fasteners (2) for the cupholder accent lamp (3) from the console (1).
    GC0177593Courtesy of CHRYSLER GROUP, LLC

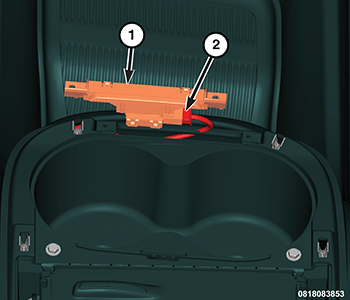

  4. Lift the cupholder accent lamp unit (1) out of the console and disconnect the console wire harness connector (2) from the lamp (1).
  5. Remove the lamp from the vehicle.
