Lamp, Courtesy - Front Door, Map: Removal

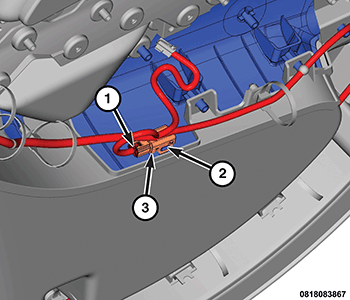

GC0177764Courtesy of CHRYSLER GROUP, LLC
NOTE:

Driver side illustrated; passenger side similar.

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the appropriate left or right front door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL AND INSTALLATION .
  3. Disconnect the door wiring harness lamp connector (1) from the door map pocket lamp (3).
  4. Press the locking tab (2) toward the lamp (3) to release the lamp from the door map pocket panel.
  5. Remove the lamp (3) from the vehicle.
