Installation - Lamp With Combination Bezel

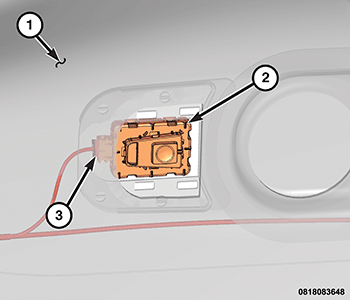

GC0178217Courtesy of CHRYSLER GROUP, LLC
  1. Position the courtesy lamp (2) to the headliner (1) and connect the roof wiring harness connector (3) to courtesy lamp (2).

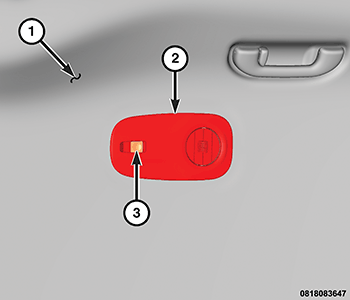

    GC0178134Courtesy of CHRYSLER GROUP, LLC
  2. Position the combination bezel (2) to the air conditioning outlet duct and courtesy lamp (3), then snap the bezel onto the lamp and air duct.
  3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
