Removal And Installation: Installation

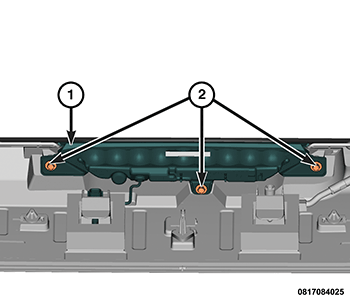

GC0177464Courtesy of CHRYSLER GROUP, LLC
  1. Install the CHMSL unit (1).
  2. Install the fasteners (2) securing the CHMSL (1) to the spoiler and tighten securely.
  3. Connect the wire harness connector.
  4. Install the liftgate spoiler. Refer to SPOILER, DECKLID, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
