Removal And Installation: Lamp

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

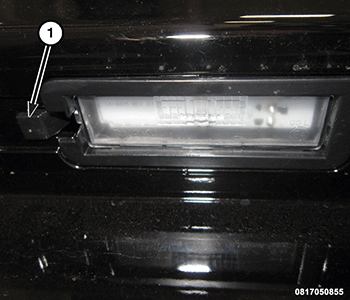

    GC0170225Courtesy of CHRYSLER GROUP, LLC
  2. Using a trim stick, release (1) the license plate lamp from the liftgate.

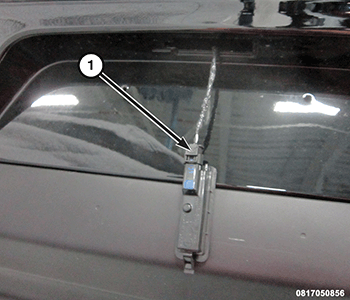

    GC0170251Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the license lamp from the wire harness connector.


GC0170251Courtesy of CHRYSLER GROUP, LLC
  1. Connect the wire harness connector (1) to the license plate lamp.
    GC0170225Courtesy of CHRYSLER GROUP, LLC
  2. Insert the license plate lamp to the liftgate until firmly seated.
  3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
