Body Lamp Bulb: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the body side tail lamp. Refer to LAMP, TAIL, REMOVAL AND INSTALLATION .

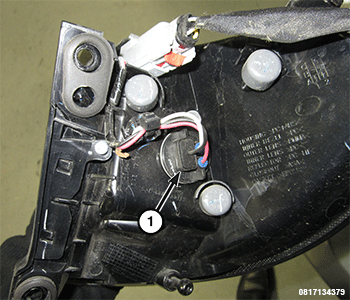

- Firmly grasp the bulb socket (1) and rotate it counter-clockwise about a 1/4 turn to unlock it.
- Pull the socket and bulb straight out from the keyed opening in the housing and remove the bulb.
