Front Camera: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
    GC0178238Courtesy of CHRYSLER GROUP, LLC

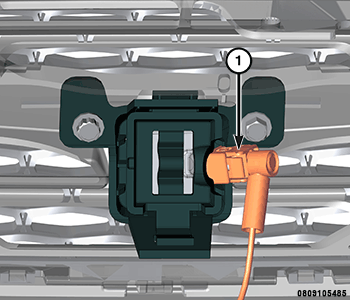

  3. Disconnect the wire harness connector (1) from the surround view camera.
    GC0177553Courtesy of CHRYSLER GROUP, LLC

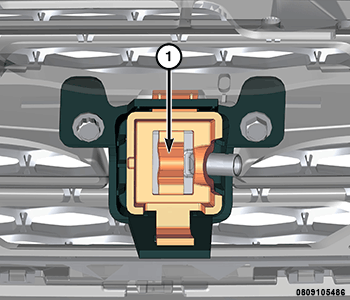

  4. Remove the retaining clip (1) securing the surround view camera to the surround view camera bracket.
    GC0177412Courtesy of CHRYSLER GROUP, LLC

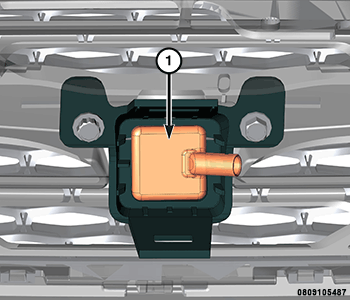

  5. Remove the surround view camera (1) from the bracket.
