Power Transfer Unit (PTU) Fluid Fill
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the front belly pan. Refer to BELLY PAN, FRONT, REMOVAL AND INSTALLATION .
- Position a drain pan under the PTU fill plug.

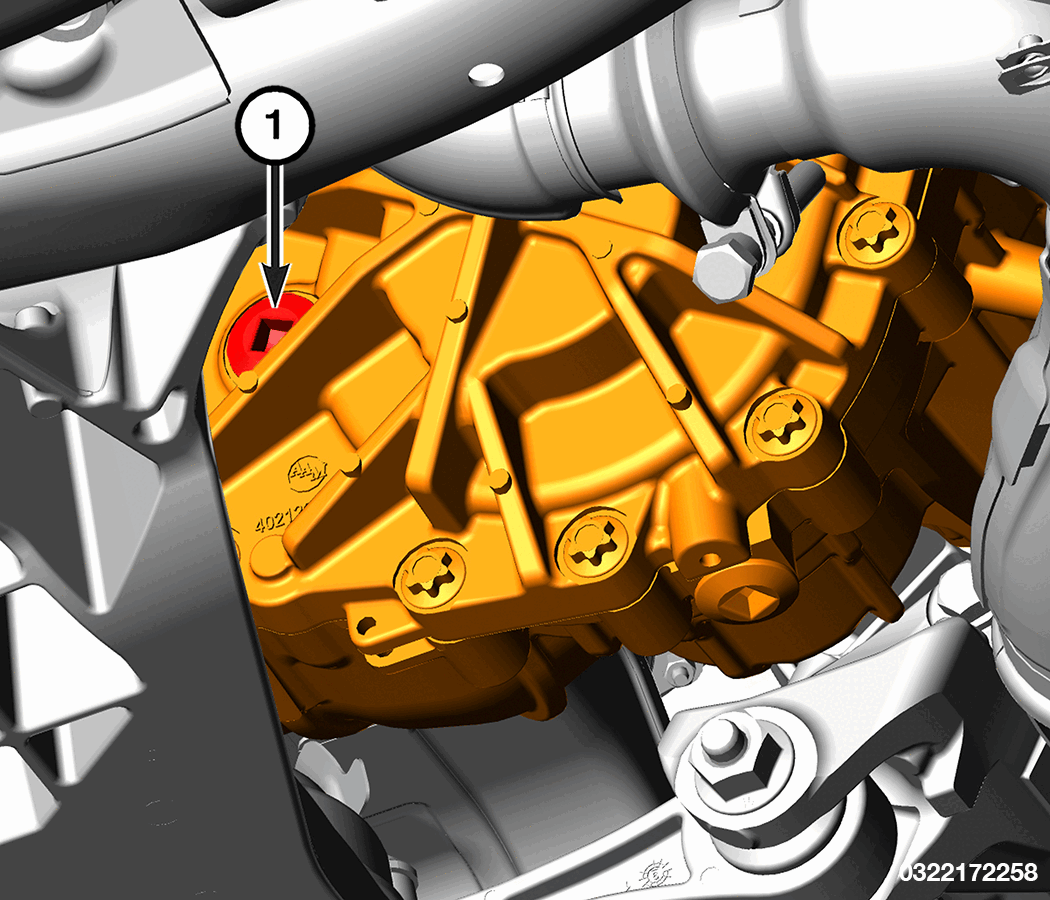

- Remove the fill plug (1).
- Fill the PTU to the bottom of the PTU fill plug hole using the specified fluid. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS
.NOTE:
It may take several minutes for the fluid to equalize in the PTU before a final fluid level check can be determined.
- Install PTU fill plug and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
- Install the front belly pan. Refer to BELLY PAN, FRONT, REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
