Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  3. Disconnect the EGR valve wire harness connector.
    GC0173683Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the EGR cooler hose (1) from the EGR valve.

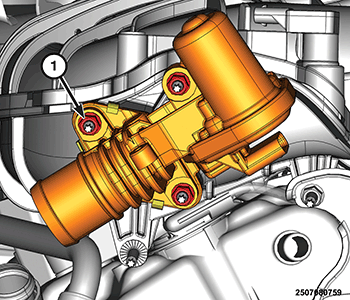

    GC0173585Courtesy of CHRYSLER GROUP, LLC
  5. Remove the nuts (1) and the EGR valve.
