2ND Row Seat Release Actuator Switch: Removal

Remove the appropriate front seat cover and cushion and place it on a workbench. Refer to COVER, SEAT CUSHION, FRONT, REMOVAL AND INSTALLATION .
Remote the seat frame top front metal cover to gain access to the switch.

Courtesy of CHRYSLER GROUP, LLC

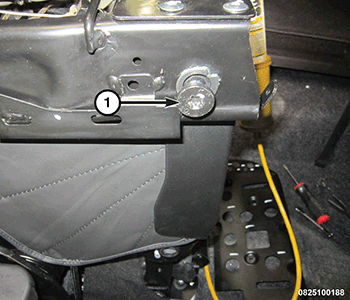

Loosen the large bolts (1) at each front side of the seat frame.

Courtesy of CHRYSLER GROUP, LLC

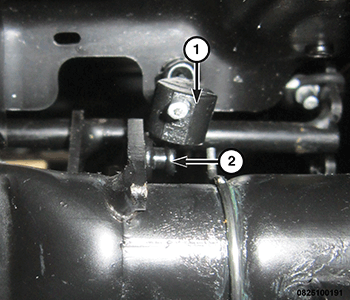

At the right front of the frame, remove the cable lock tab (1) from the stud (2).

Courtesy of CHRYSLER GROUP, LLC

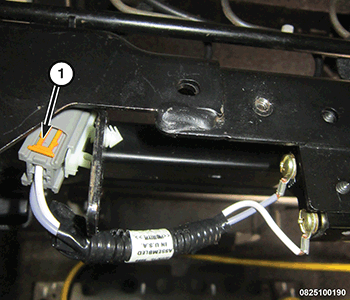

Disconnect the wiring harness connector (1) from the seat release actuator switch harness.

Courtesy of CHRYSLER GROUP, LLC

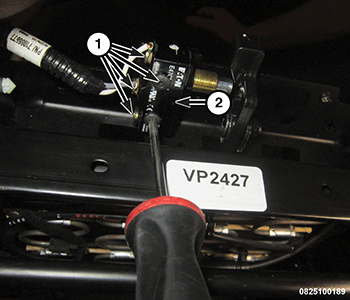

Position the seat all the way forward to access the switch (2) bolts.
Remove the switch retaining bolts (1).
Remove the switch from the vehicle.
