Removal And Installation: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Look inside of the 12V receptacle (1) and note position of the retaining bosses (2).

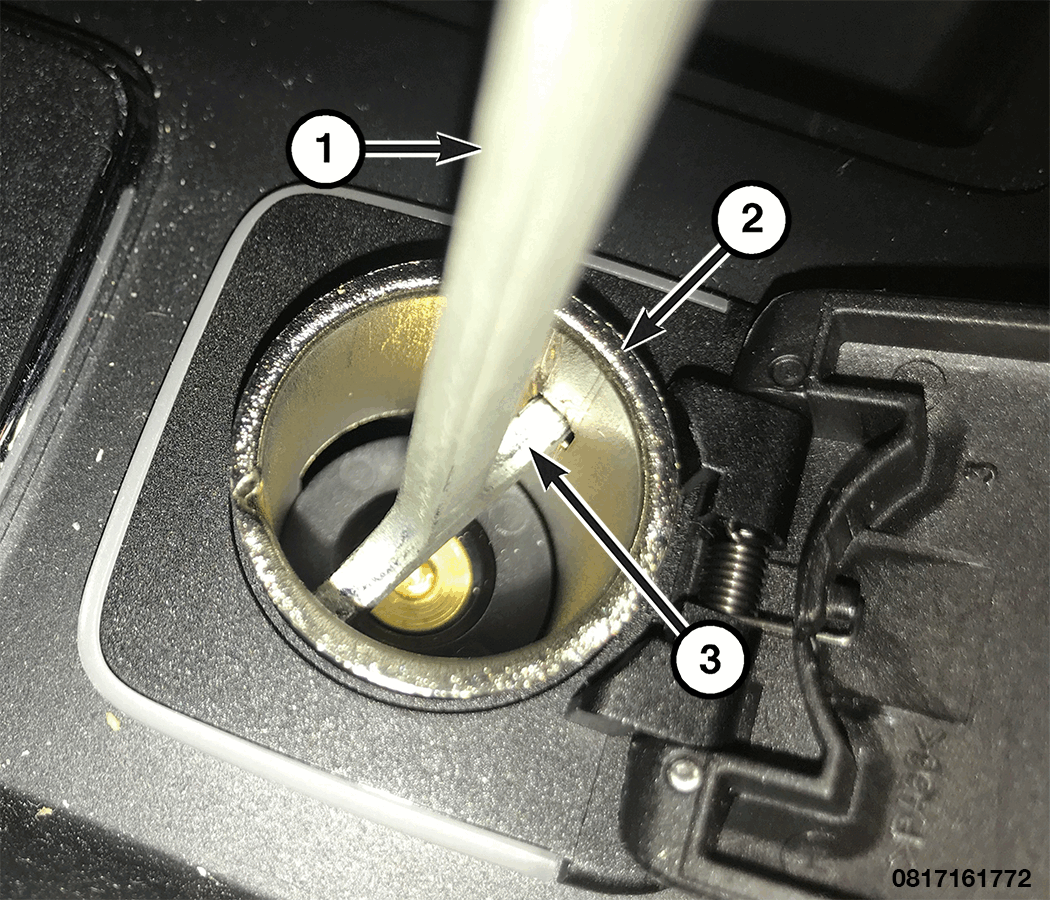

- Insert Remover, Power Outlet (special tool #10246A, Remover, Power Outlet) (1) into the retaining bosses (3) of the power outlet (2).
- Pull the base (2) out through the mounting ring by gently rocking the tool (1).
- Disconnect the wire harness electrical connector (1) from the power outlet (2).
- Set the base aside and remove the base mount ring.
