Removal And Installation: Removal

NOTE:

The procedure for replacing the stow motor assembly is the same for both the 60 and 40 third row power folding seats. The following steps should be performed only on the seat with the inoperative stow motor assembly.

  1. Remove the effected third row power folding seat. Refer to SEAT, REMOVAL AND INSTALLATION .
  2. Remove the seat cushion and cover assembly. Refer to COVER, SEAT CUSHION, STOW-N-GO, REMOVAL AND INSTALLATION .

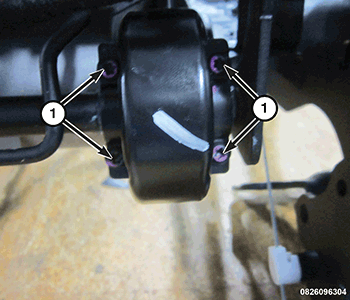

    GC0177749Courtesy of CHRYSLER GROUP, LLC
  3. Remove the gear cover retaining fasteners (1) and the gear cover.

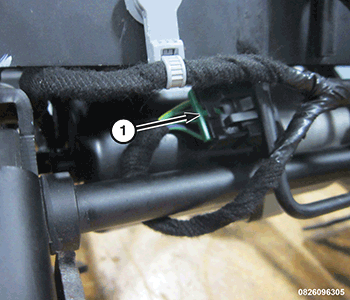

    GC0177778Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the motor electrical connector (1).

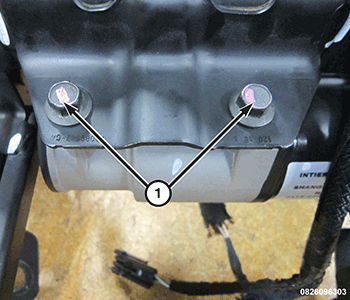

    GC0177551Courtesy of CHRYSLER GROUP, LLC
  5. Remove the stow motor retaining bolts (1) and separate the motor assembly from the seat frame.
