Possible Causes
| Possible Causes |
|---|
| SOLENOID SUPPLY 1 CIRCUIT OPEN |
| SOLENOID SUPPLY 1 CIRCUIT SHORTED TO GROUND |
| TORQUE CONVERTER PRESSURE CONTROL SOLENOID CIRCUIT OPEN |
| TORQUE CONVERTER PRESSURE CONTROL SOLENOID CIRCUIT SHORTED TO GROUND |
| TORQUE CONVERTER PRESSURE CONTROL SOLENOID CIRCUIT SHORTED TO VOLTAGE |
| TORQUE CONVERTER PRESSURE CONTROL SOLENOID |
| TRANSMISSION CONTROL MODULE (TCM) |
NOTE:

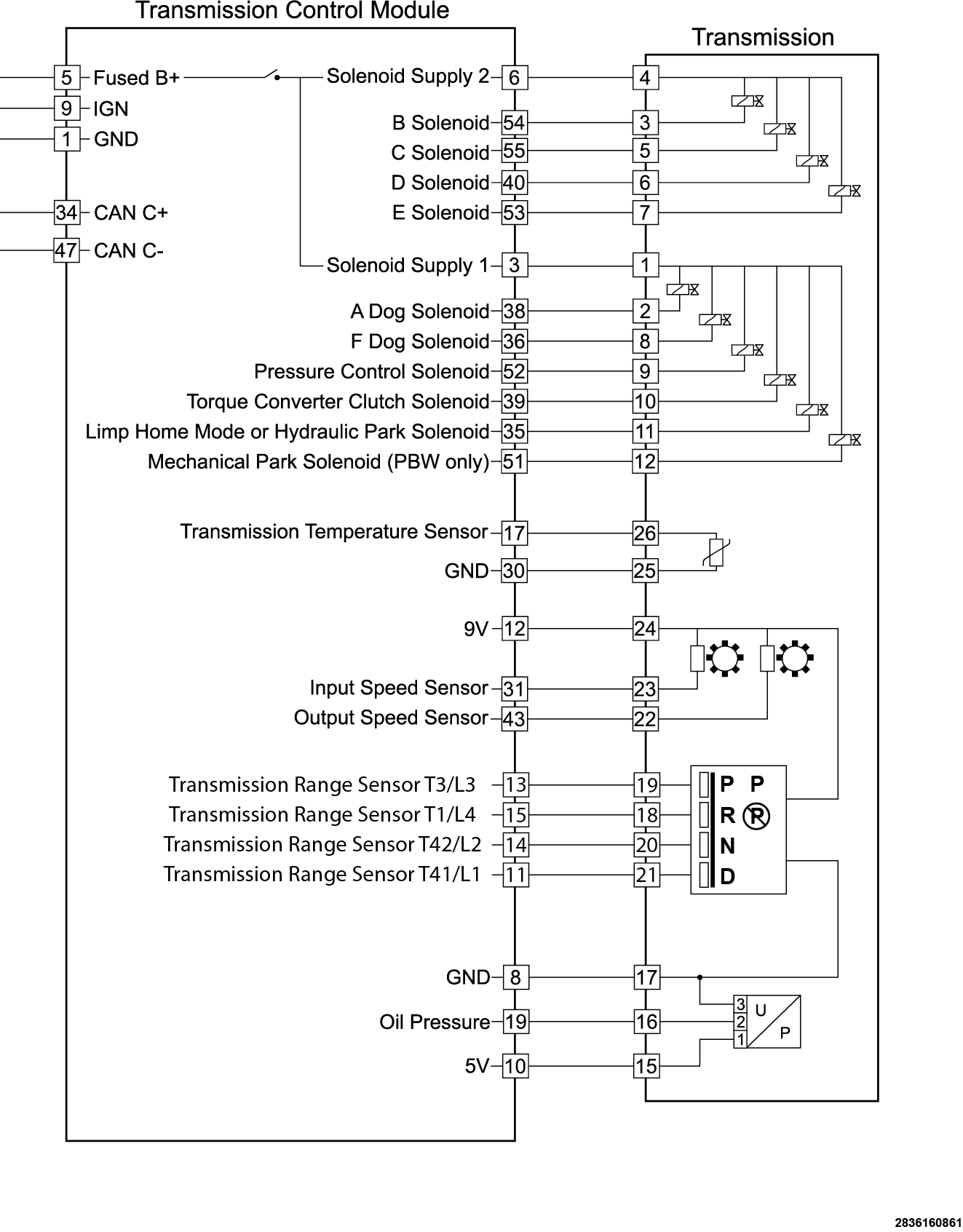

In the schematic below, the T41/L1 and T42/L2 circuits are only present in Shift by Cable applications.
Always perform the PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE before proceeding. Refer to PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE .
