Removal And Installation - Microphone: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Lower the headliner. Refer to HEADLINER, REMOVAL AND INSTALLATION .

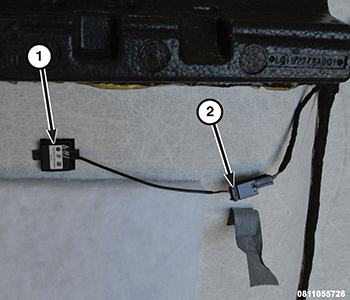

    GC0172157Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector (2) from the microphone (1).
  4. Remove the microphone from the headliner.
