Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the left quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .
    GC0178039Courtesy of CHRYSLER GROUP, LLC

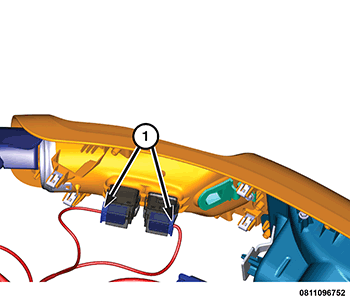

  3. Disconnect the wiring harness connection (1) from the switch.
    GC0178264Courtesy of CHRYSLER GROUP, LLC

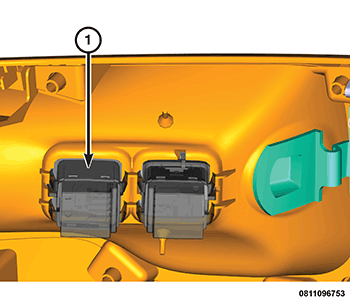

  4. Using a trim stick or similar tool, release the switch from the retainers and remove.
