Internal Hydraulic Passages
Provided in the following illustrations are the locations of hydraulic passages that will aid in diagnosing leaks and clutch malfunctions.

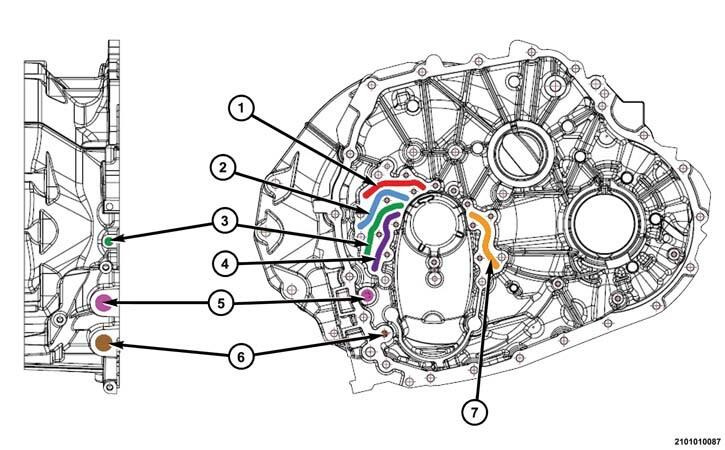

INTERNAL HYDRAULIC PASSAGES
| 1= Dog Clutch A - OFF | 2= Clutch E |
| 3= Torque Converter Open | 4= Dog Clutch F - OFF |
| 5= From Cooler | 6= To Cooler |
| 7= Dog Clutch F - ON |

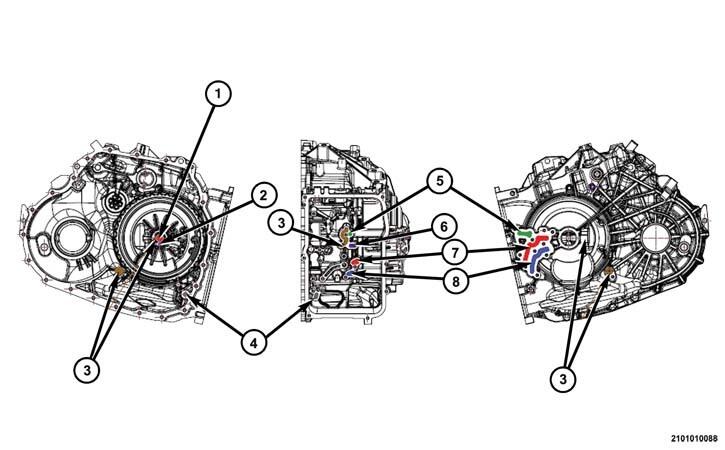

INTERNAL HYDRAULIC PASSAGES
| 1= Dog Clutch A - ON | 2= Clutch B |
| 3= Lubrication | 4= To Cooler |
| 5= Clutch C | 6= Clutch D |
| 7= Dog Clutch A - ON | 8= Clutch B |

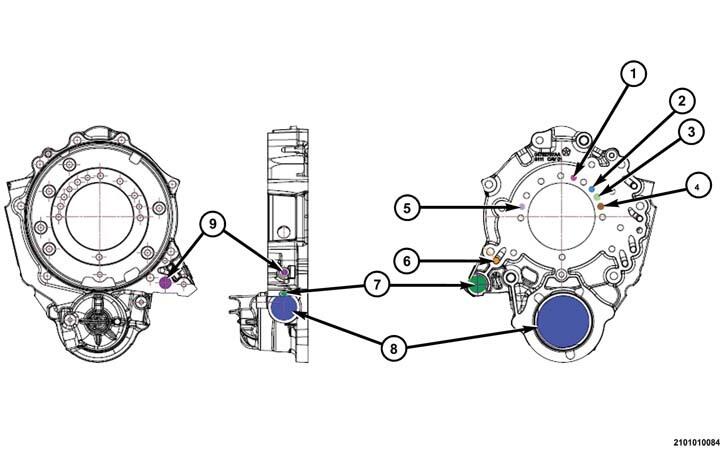

INTERNAL HYDRAULIC PASSAGES
| 1= Dog Clutch A - OFF | 2= Clutch E |
| 3= Clutch J | 4= Dog Clutch F - OFF |
| 5= Dog Clutch F - ON | 6= Front Lubrication |
| 7= Rear Lubrication | 8= Pump |
| 9= From Cooler |
