B-Clutch Disassembly

WARNING:

Always wear safety glasses when cleaning, disassembling and assembling the transmission/transaxle. Contents of the transmission/transaxle can become projectiles (e.g., springs, snap-rings, as well as metal and other debris). Failure to wear safety glasses may result in severe personal injury.

NOTE:

Clean the B-clutch components with suitable solvent and blow them dry with regulated 344 kPa (50 psi) shop air. Position all of the B-clutch components on a clean work surface in preparation for assembly.

Courtesy of CHRYSLER GROUP, LLC

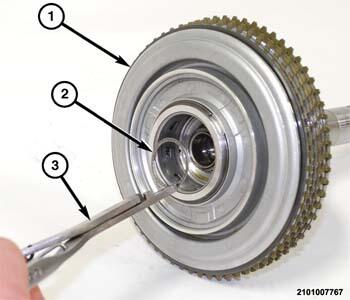

Using a suitable pair of snap-ring pliers (3), remove the snap-ring (2) holding the B-clutch hub (1) to the input shaft/dog clutch A assembly.
Remove the input shaft from the B-clutch (1).

Courtesy of CHRYSLER GROUP, LLC

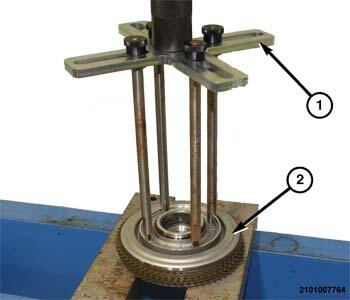

Place the B-clutch (2) with piston up on a suitable arbor press.
Using tool (special tool #8901A, Pressing Tool) (with pressure scale removed) (1) and legs (special tool #10428, Adapter, Pressing Tool), compress the B-clutch piston retainer to gain access to the snap-ring.

Courtesy of CHRYSLER GROUP, LLC

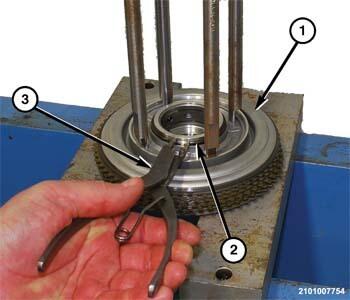

Using suitable snap-ring pliers (3), remove the snap-ring (2) holding the B-clutch piston retainer in the B-clutch (1) hub.
Remove the B-clutch (1) from the arbor press.

Courtesy of CHRYSLER GROUP, LLC

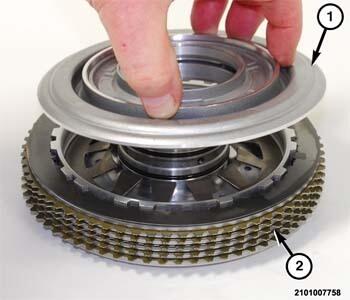

Remove the B-clutch piston and retainer (1) from the B-clutch (2).

Courtesy of CHRYSLER GROUP, LLC

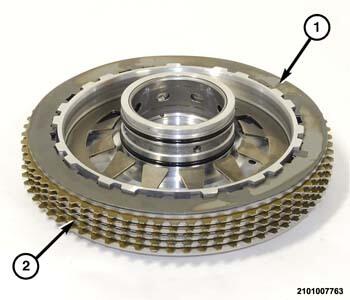

Remove the B-clutch friction discs and steel plates (2) From the B-clutch hub (1).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The first and last friction discs (2) have friction material only on one side. They are not interchangeable with the double sided friction discs (5).

NOTE:
Diesel and V-6 gas engine clutch pack shown in illustration above, 4 cylinder gas engines will have one less double sided friction disc (5) and steel plate (3).
Separate the friction discs (2) and (5) from the steel plates (3) for inspection.

Courtesy of CHRYSLER GROUP, LLC

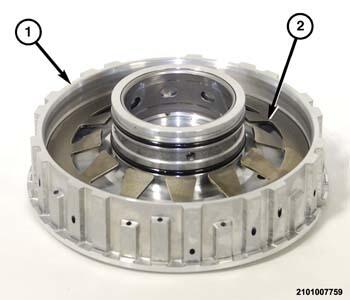

Remove the belleville spring (2) from the B-clutch hub (1).

Courtesy of CHRYSLER GROUP, LLC

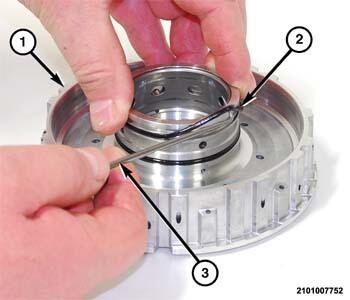

Using a suitable hook tool (3) remove the two O-ring seals (2) from the B-clutch hub (1).

Courtesy of CHRYSLER GROUP, LLC

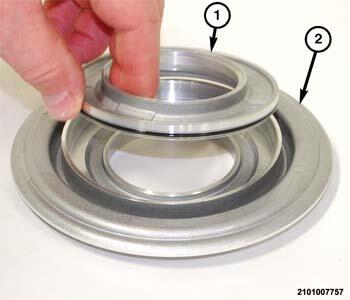

Remove the shim support (1) from the B-clutch piston (2).

Courtesy of CHRYSLER GROUP, LLC

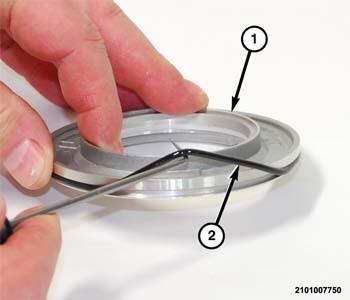

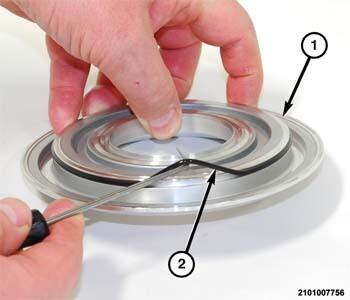

Using a suitable hook tool, remove the O-ring (2) from the shim support (1).

Courtesy of CHRYSLER GROUP, LLC
Using a suitable hook tool, remove the O-ring seal (2) from the B-clutch piston (1).
