Removal And Installation: Removal
- Remove the valve body from the vehicle. Refer to VALVE BODY, REMOVAL AND INSTALLATION .NOTE:
If the valve body is to be reused without disassembling it, store the valve body in a clean area until it is installed.

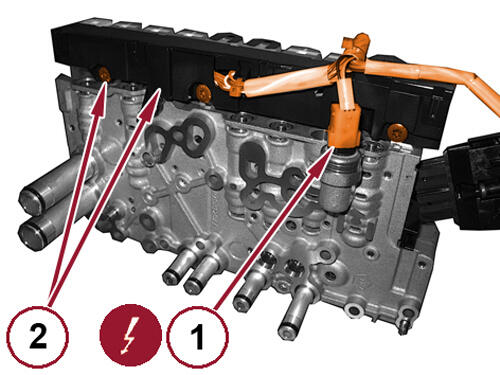

- Disconnect the wiring harness from the transmission fluid pressure transducer (1).
- Remove the screws from the solenoid connectors and lift the harness (2) from the valve body.
