Manual Park Release (MPR) Lever Removal

WARNING:

Always secure your vehicle by fully applying the parking brake, before activating the Manual Park Release. Activating the Manual Park Release will allow your vehicle to roll away if it is not secured by the parking brake or by proper connection to a tow vehicle. Activating the Manual Park Release on an unsecured vehicle could lead to serious injury or death for those in or around the vehicle.

  1. Set the parking brake.
  2. Remove the closeout panel.

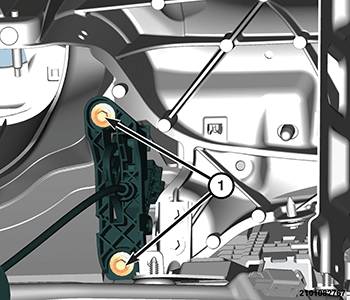

    GC0177604Courtesy of CHRYSLER GROUP, LLC
  3. Remove the Manual Park Release (MPR) lever bolts (1).
  4. Disconnect the MPR cable from the MPR lever.
  5. Remove the MPR lever from the vehicle.
