Oil Pump Sprocket Needle Bearing Installation
- Clean the oil pump sprocket needle bearing and impeller hub seal bore.

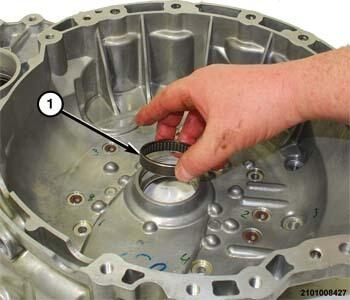

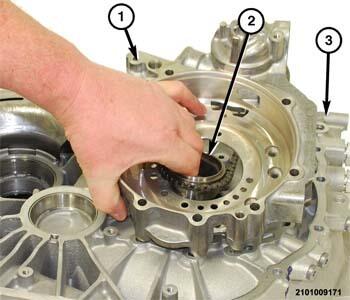

- Place the oil pump sprocket needle bearing (1) in position into the bore in the center of the bellhousing.

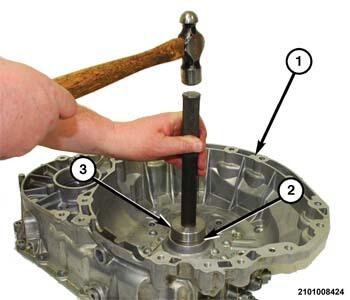

- Using tool (special tool #10503, Installer, Bearing) (3) and (special tool #C-4171, Driver Handle, Universal), install the oil pump sprocket needle bearing (2) in the bellhousing (1) bore until the bearing is seated against the flange.

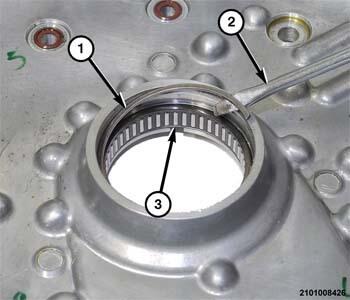

- Install the snap-ring (1) to hold the oil pump sprocket needle bearing (3) in the bellhousing.
- Apply assembly lube on the lip of the NEW
seal.

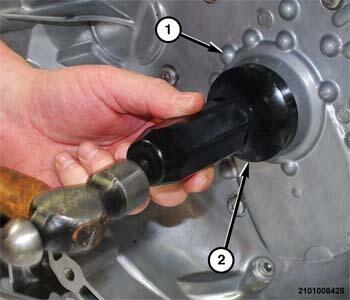

- Place the seal on tool (special tool #9677, Installer, Seal) (2), with the tension spring away from the tool, and insert the seal into the bore in the bellhousing (1) and using a suitable hammer, drive the seal into the bore in the center of the bellhousing until the tool seats against the bellhousing.

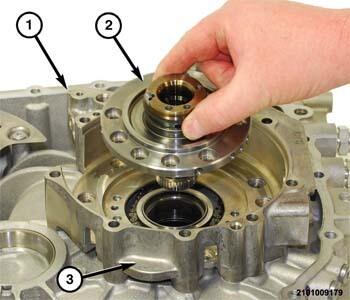

- Place the intermediate support plate and oil pump (1) in position on the bellhousing (3) while guiding the oil pump sprocket (2) into oil pump sprocket needle bearing.
- Install the bolts (3) to hold the intermediate support plate and oil pump (1) to the bellhousing and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
- Place the reaction shaft (2) in position on the intermediate support plate (1).

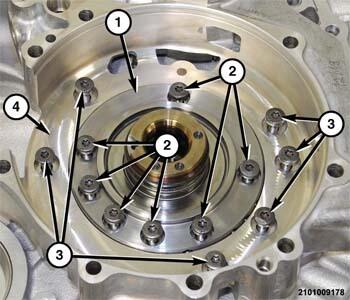

- Install the bolts (2 and 3) that hold the reaction shaft support (1) and the intermediate support plate (4) to the bellhousing and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .

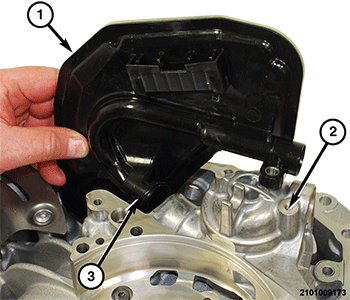

- Insert the oil filter neck (3) into the oil pump bore and align the bolt hole with the tapped hole in the intermediate support plate (2).

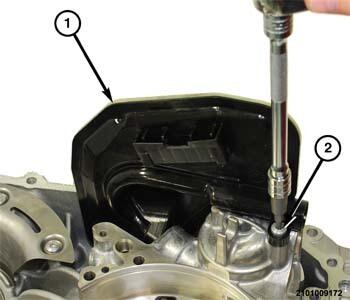

- Install the bolt (2) to hold the fluid filter (1) to the intermediate support plate and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .

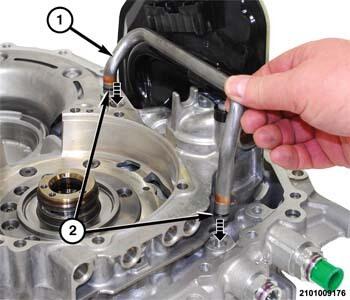

- Install NEW O-rings (2) on the fluid tube and install the fluid tube (1) into the bellhousing and intermediate support plate.
- Install the bellhousing on the transmission. Refer to BELLHOUSING, REMOVAL AND INSTALLATION .
- Install the transmission in the vehicle. Refer to REMOVAL AND INSTALLATION .
