Removal And Installation: Installation
- Clean the reaction shaft with suitable solvent and blow it dry using regulated 344 kPa (50 psi) shop air.
- Inspect the reaction shaft for excess damage or wear. Replace the reaction shaft if damage is present.

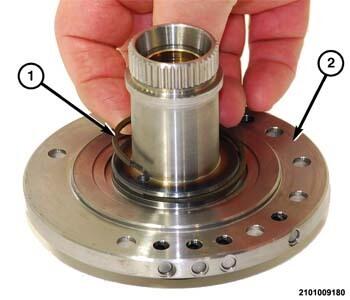

- Install a NEW
seal ring (1) in the groove on the outer reaction shaft hub (2).

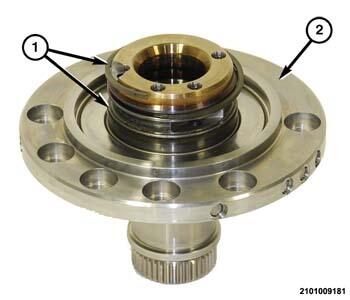

- Install NEW
seal rings (1) in the grooves on the inner reaction shaft hub (2).
- Place the reaction shaft (2) into the intermediate support plate (3).
- Install the bolts (2) to hold the reaction shaft (1) to the intermediate support plate (4) and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
- Install the bellhousing on the transmission. Refer to BELLHOUSING, REMOVAL AND INSTALLATION .
- Install the transmission in the vehicle. Refer to REMOVAL AND INSTALLATION .
- Fill the transmission to the proper level. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
- Road test the vehicle to verify the repair.
