Removal And Installation: Installation

Place the valve body on a clean work surface supported on each end by wooden blocks with the upper half facing upward.

Courtesy of CHRYSLER GROUP, LLC

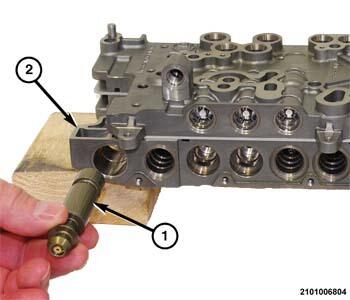

1. Insert the parking lock valve into the bore in the outer valve body.

   Courtesy of CHRYSLER GROUP, LLC

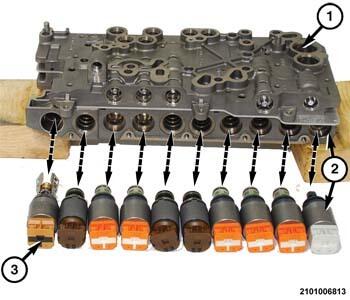

2. Insert the solenoids (3) straight into the outer valve body (2).

   Courtesy of CHRYSLER GROUP, LLC

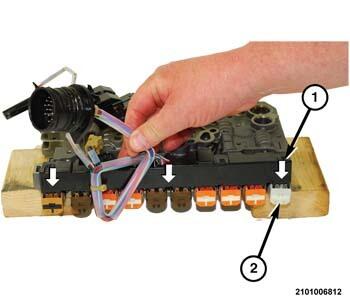

3. Test fit the wire connector (1) into the solenoid connectors (2) to assure alignment.
4. Remove the wire connector with care not to rotate the solenoids.

   Courtesy of CHRYSLER GROUP, LLC

5. Position the valve body so the outer valve body is on top.

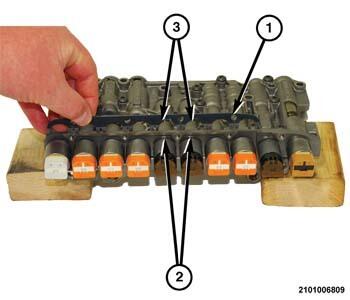

6. Place the large solenoid retaining plate (1) in position on the valve body with the index tabs (3) on the retainer in the notches (2) on the center dog clutch solenoids.

   Courtesy of CHRYSLER GROUP, LLC

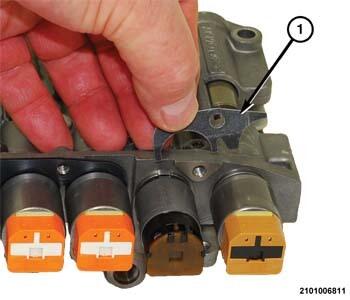

7. Place the small solenoid retaining plate (1) in position on the valve body.

   Courtesy of CHRYSLER GROUP, LLC

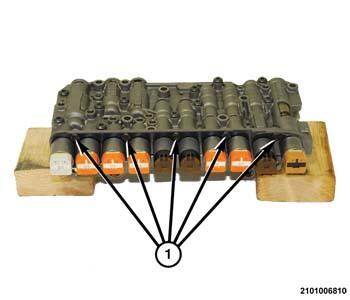

8. Install the screws (1) to hold the solenoid retaining plates to the outer valve body and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
9. Install the valve body in the transmission. Refer to VALVE BODY, REMOVAL AND INSTALLATION .
10. Perform Transmission Verification Test-948TE. Refer to TRANSMISSION VERIFICATION TEST - 948TE 9HP48 .
