Removal And Installation: Installation

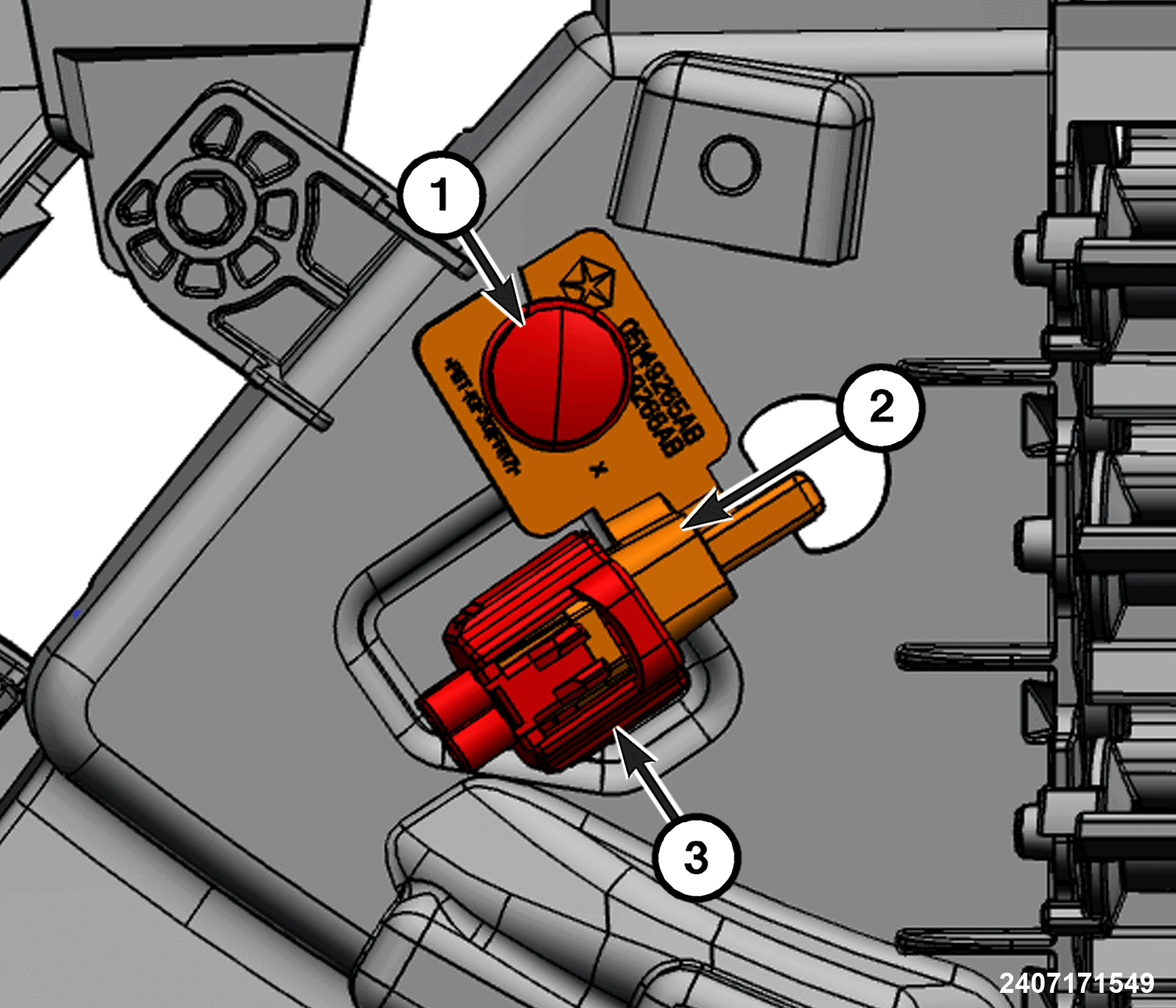

GC0200317Courtesy of CHRYSLER GROUP, LLC
  1. Install the push pin (1) that secures the ambient air temperature sensor (2) to the vehicle.
  2. Connect the wire harness connector (3) to the ambient air temperature sensor.
  3. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
