Removal And Installation: Installation

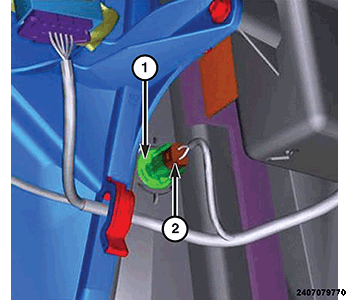

GC0177539Courtesy of CHRYSLER GROUP, LLC
  1. Connect the wire harness connector (2) to the evaporator temperature sensor (1).
  2. Position the evaporator temperature sensor (1) into the HVAC housing.
  3. Rotate the evaporator temperature sensor clockwise 45 degrees to engage the locking tab to the HVAC housing.
  4. Position the right side console closeout cover and engage the retaining tabs.
  5. Install the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
