Removal And Installation: Installation

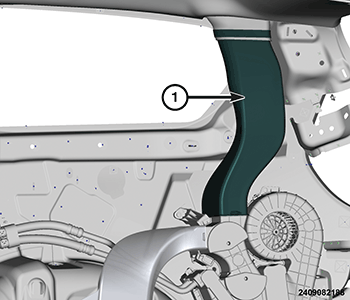

GC0178091Courtesy of CHRYSLER GROUP, LLC
  1. Install the rear ceiling distribution duct (1) to the duct located in the rear of the headliner.
  2. Install the rear ceiling distribution duct (1) to the top of the rear HVAC housing. Make sure the duct is fully engage to the housing.
  3. Install the right rear quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .
