Removal And Installation: Removal

  1. Remove right rear quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .
    GC0178160Courtesy of CHRYSLER GROUP, LLC

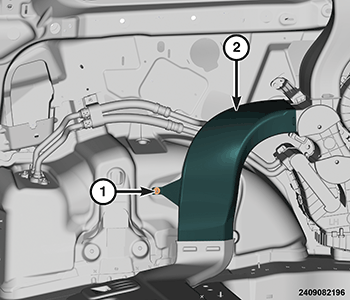

  2. Remove the side distribution duct from the wheelhouse stud (1) and remove the duct (2) from the Heating, Ventilation and Air Conditioning (HVAC) housing.
  3. Remove the rear carpet. Refer to CARPET, REMOVAL AND INSTALLATION .
    GC0177731Courtesy of CHRYSLER GROUP, LLC

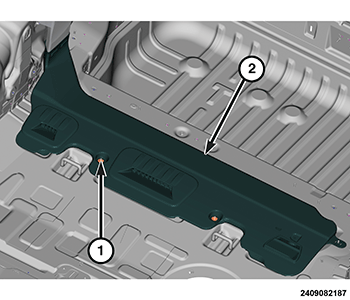

  4. Remove the floor distribution duct to floor nuts (1).
  5. Remove the rear floor distribution duct (2) from the vehicle.
