Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
    GC0178013Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the evaporator purge solenoid wire harness connector (1).
    GC0177970Courtesy of CHRYSLER GROUP, LLC
  4. Remove the purge vapor line quick connect (1) from the purge solenoid. Refer to FITTING, QUICK CONNECT, STANDARD PROCEDURE .

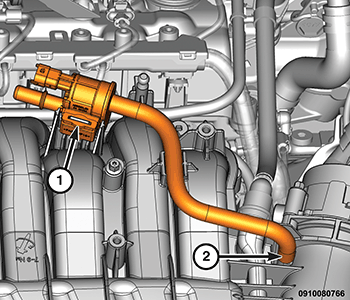

    GC0178069Courtesy of CHRYSLER GROUP, LLC
  5. Remove the purge hose (2) from the intake manifold.
  6. Remove the purge solenoid (1) from the bracket.
