Removal And Installation: Removal

  1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

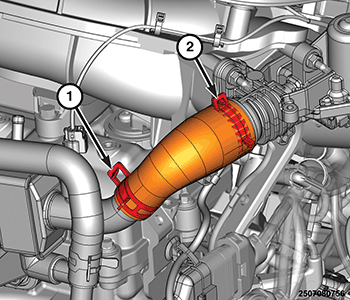

    GC0173668Courtesy of CHRYSLER GROUP, LLC
  2. Remove the EGR crossover tube (1) from the EGR cooler.
  3. Remove the EGR crossover tube (2) from the EGR valve.
