Removal And Installation: Installation

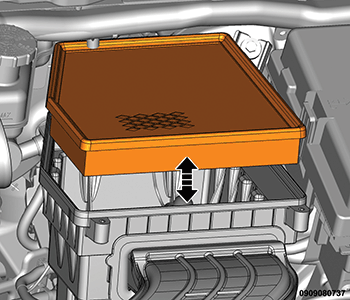

GC0177739Courtesy of CHRYSLER GROUP, LLC
  1. Install the air cleaner element into the air cleaner housing.
    GC0177191Courtesy of CHRYSLER GROUP, LLC
  2. Seat the cover onto the housing and tighten the housing cover retaining screws (2).

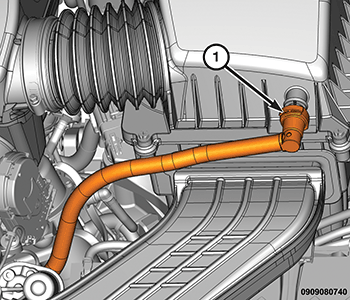

    GC0177606Courtesy of CHRYSLER GROUP, LLC
  3. Connect the fresh air makeup hose (1) to the air cleaner body.
