Off Vehicle: Removal
- Remove the cylinder head(s). Refer to CYLINDER HEAD, REMOVAL AND INSTALLATION .

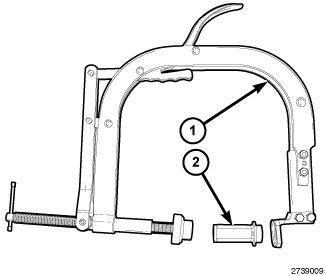

- Position the Valve Spring Compressor Adapter (special tool #10224, Adapter, Valve Spring) (2) in the Valve Spring Compressor (special tool #C-3422-D, Compressor, Valve Spring) (1).NOTE:
Number 3 cylinder intake valve spring compression shown in illustration, all other valves similar.
- Compress the valve spring (3) and remove the valve retaining locks (4).NOTE:
If the springs are to be reused, identify their positions so that they can be reassembled into their original locations. Number 5 cylinder exhaust valve spring shown in illustration, all other valves similar.
- Release the valve spring compressor and remove the valve spring retainer (1) and valve spring (2).
- Remove the spring seat (1).
