Removal And Installation: Installation

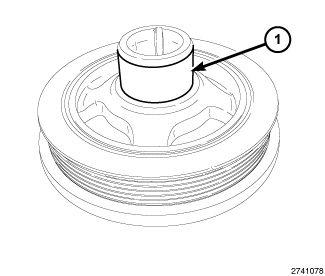

GC0144230Courtesy of CHRYSLER GROUP, LLC
  1. Ensure that the front crankshaft seal surface (1) is clean and free of any dust, dirt, or debris.

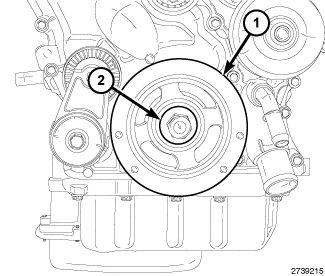

    GC0144222Courtesy of CHRYSLER GROUP, LLC
  2. Align the crankshaft vibration damper (1) to the flywheel key on the crankshaft and install the damper. Seat the damper on the crankshaft sprocket.
  3. Install and hand tighten the crankshaft vibration damper bolt (2).

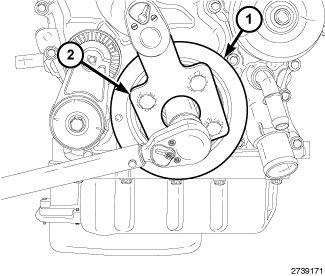

    GC0144221Courtesy of CHRYSLER GROUP, LLC
  4. Hold the crankshaft vibration damper (1) with Vibration Damper Holder (special tool #10198, Holder, Vibration Damper) (2) and tighten the crankshaft vibration damper bolt to the proper

    Refer to TECHNICAL SPECIFICATIONS .

  5. Install the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
