Removal And Installation: Removal

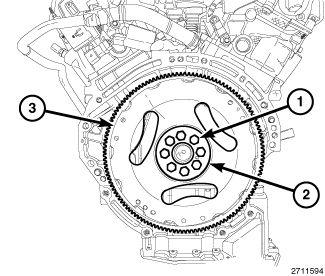

GC0144180Courtesy of CHRYSLER GROUP, LLC
  1. Remove the transmission. Refer to REMOVAL AND INSTALLATION .
  2. Remove the bolts (1).
    CAUTION:

    Do not use an impact socket or a thick walled socket when removing or installing the flexplate retaining bolts, damage to the crankshaft, internal engine or the transmission may occur.

  3. Remove the flexplate (3).
