Coolant Crossover: Installation

Courtesy of CHRYSLER GROUP, LLC

Clean gasket sealing surfaces.

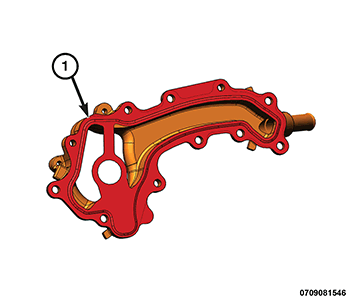

Install a NEW gasket (1) onto the coolant crossover.

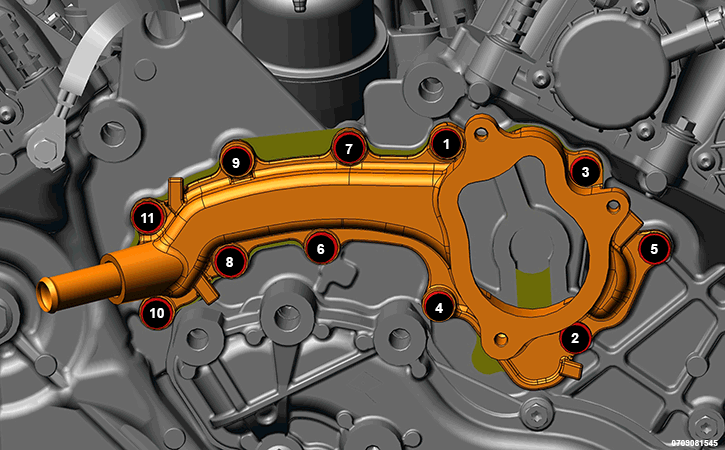

Fig 1: Coolant Crossover Bolts Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The shorter M6 mounting bolts (2), bolt directly to the engine timing cover.
Install the coolant crossover. Using the tightening sequence shown in illustration, tighten the bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

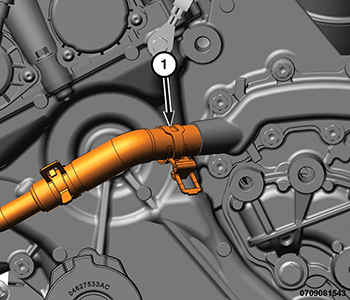

Install the heater supply hose to the coolant crossover (1).
Install the thermostat housing. Refer to THERMOSTAT, REMOVAL AND INSTALLATION .
