Removal And Installation: Removal

  1. Raise and support vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Disconnect both stabilizer links from the stabilizer bar. Refer to LINK, STABILIZER BAR, REMOVAL AND INSTALLATION .

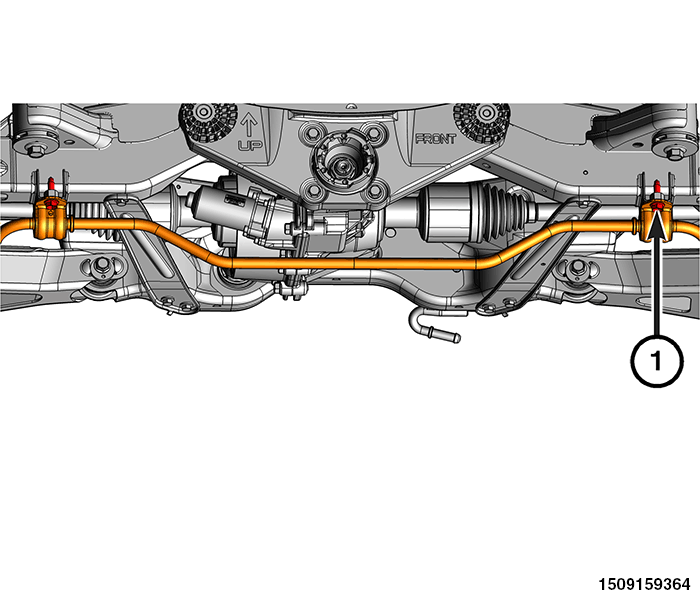

    GC0200343Courtesy of CHRYSLER GROUP, LLC
  3. Remove the stabilizer bar fasteners (1).
  4. Remove the stabilizer bar, bushings, and brackets as an assembly.
  5. Remove the stabilizer bar brackets from the bushings.
  6. Remove the stabilizer bar bushings from the stabilizer bar.
