Front Carpet: Removal

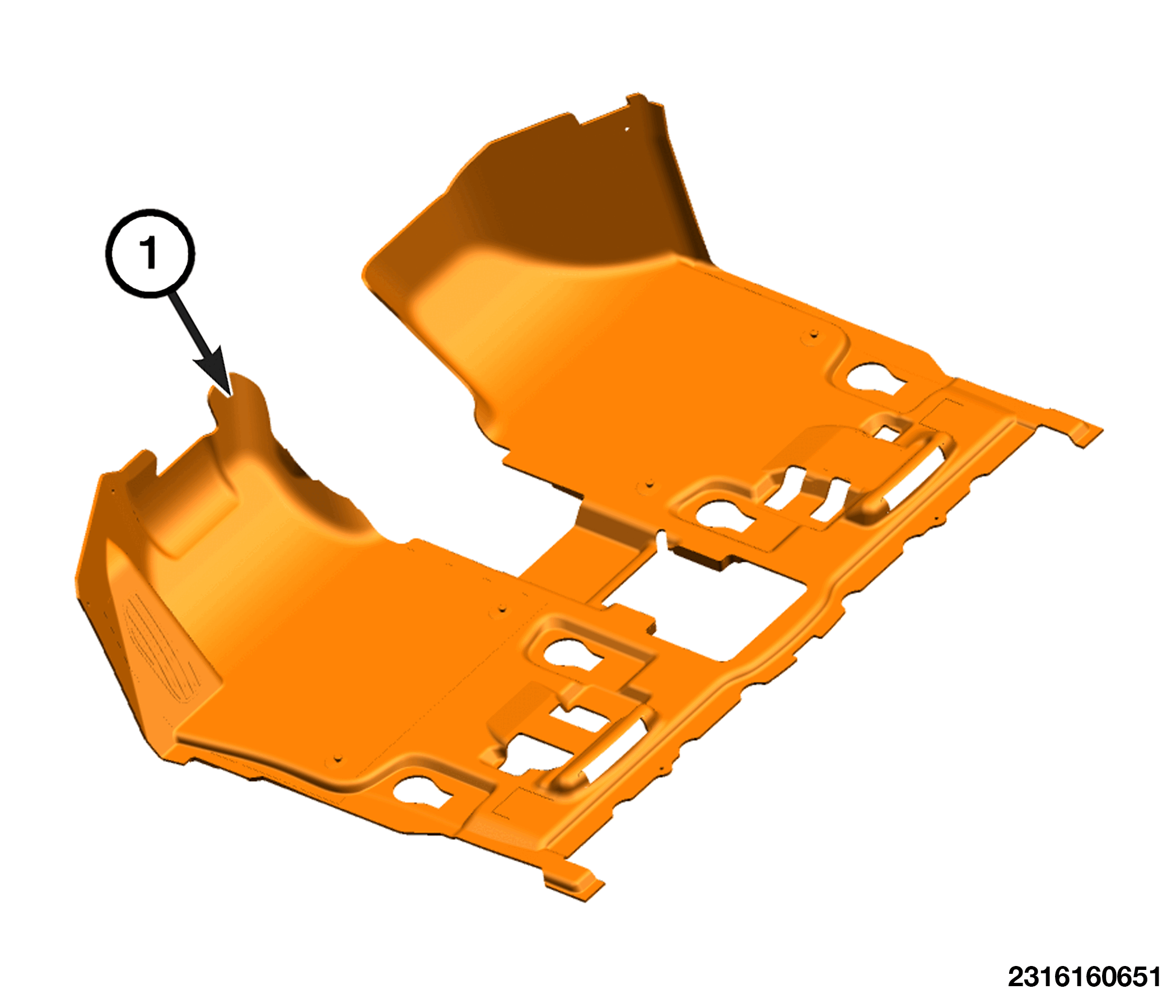

GC0188633Courtesy of CHRYSLER GROUP, LLC
  1. Remove the load floor frame. Refer to LOAD FLOOR, FRAME, REMOVAL AND INSTALLATION .
  2. Remove the front seats. Refer to SEAT, FRONT, REMOVAL AND INSTALLATION .
  3. Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .
  4. Remove the cowl side trim panel. Refer to PANEL, COWL TRIM, REMOVAL AND INSTALLATION .
  5. Remove the floor console bracket.
  6. Remove the module located under the driver side front seat, if equipped.
  7. Remove the module located under the passenger side front seat, if equipped.
  8. Remove the push fasteners at the front of the front floor carpet.
  9. Remove the plastic nuts at the rear, then the front floor carpet.
