Home >> Chrysler >> 2021 >> Voyager LX, Gas >> Repair and Diagnosis >> Body & Frame >> Windows >> Body - Interior & Exterior >> Sunroof, Dual Pane >> Glass, Sunroof, Rear >> Removal And Installation >> Removal

Removal And Installation: Removal

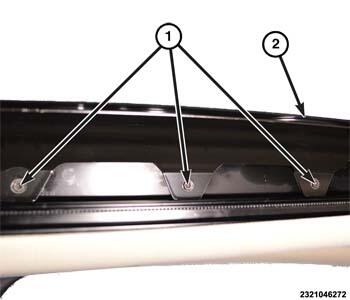

GC0162856Courtesy of CHRYSLER GROUP, LLC
  1. Close the front glass and open the sunshade fully.
  2. Remove the sunroof. Refer to SUNROOF, DUAL PANE, REMOVAL AND INSTALLATION .
  3. Remove the fasteners (1) then the rear glass (2).
