Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    GC0177996Courtesy of CHRYSLER GROUP, LLC

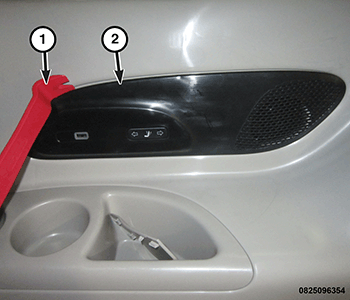

  2. Using a trim stick (1) (special tool #C-4755, Trim Stick) or equivalent, disengage the seat switch bezel (2) from the D-Pillar trim panel.
    GC0177373Courtesy of CHRYSLER GROUP, LLC

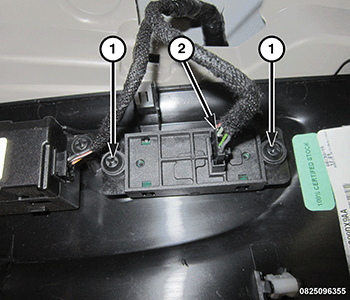

  3. Disconnect the switch electrical connector (2).
  4. Remove the fasteners (1) securing the switch to the bezel.
  5. Remove the switch.
