Removal And Installation: Removal

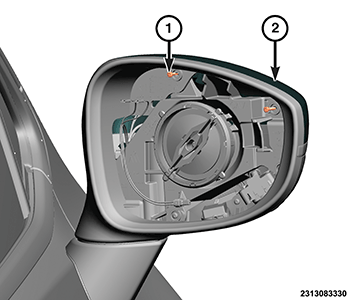

GC0178100Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rearview mirror glass. Refer to MIRROR, OUTSIDE REARVIEW, GLASS, REMOVAL AND INSTALLATION .
  2. Remove the two fasteners (1) securing the mirror cover (2) to the top of the mirror glass motor.

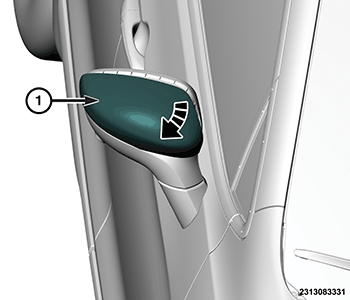

    GC0177642Courtesy of CHRYSLER GROUP, LLC
  3. Pull the inboard upper corner of the mirror cover (1) outward.
  4. Remove the rearview mirror cover (1) from the rearview mirror.
