Removal And Installation: Removal
- Using a hook tool, remove the clip from behind the recline handle (2) then pull outward to remove the handle.
- Remove the two screws (1).
- Using a trim stick, release the front of the outboard side shield (3) then lift and remove.

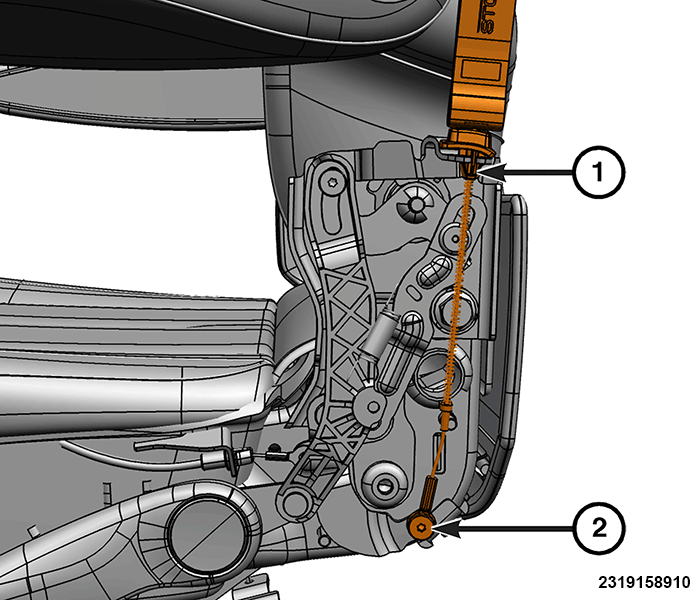

- Using pliers, squeeze the cable tabs (1) and remove the cable from the bracket.
- Remove the fastener (2) and remove the cable from the mechanism.
