Removal And Installation: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Lower the steering column to the lowest position and pull the steering wheel to the full rear position.

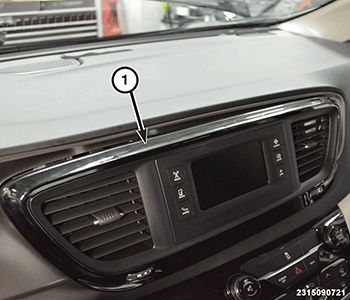

- Using a trim stick, release the center vent bezel (1) from the instrument panel. Disconnect the wire harness connector and remove.

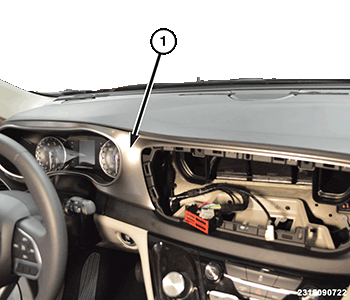

- Using a trim stick or equivalent, carefully remove the instrument cluster bezel (1).
