Rear Carpet: Installation

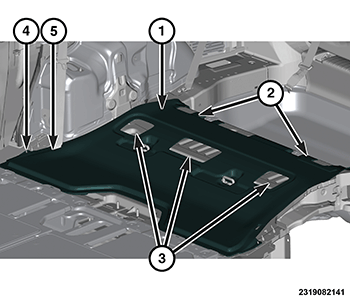

GC0177459Courtesy of CHRYSLER GROUP, LLC
  1. Position the rear floor carpet (1) into the vehicle.
  2. Install the plastic nut fasteners (2 and 4).
  3. Install the floor vent bezels (3).

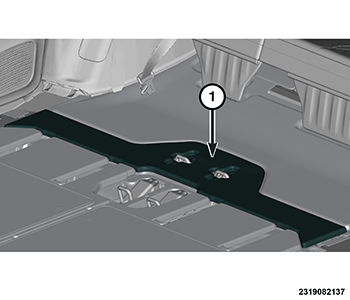

    GC0177470Courtesy of CHRYSLER GROUP, LLC
  4. Install the rear center filler panel (1).
  5. Install the scuff plate extension (1).
