Removal And Installation: Installation

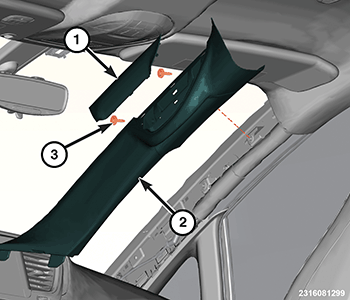

GC0177451Courtesy of CHRYSLER GROUP, LLC
  1. Position the A-pillar trim panel (2) down into the top of the instrument panel.
  2. Starting at the bottom of the A-pillar trim panel, align the retaining clips and hand tap to engage.
  3. Install the bolts (3) and tighten securely.
  4. Install the cover (1).
