Removal And Installation: Removal

GC0175255Courtesy of CHRYSLER GROUP, LLC
  1. Open the sunshade fully.
  2. Move the front glass to the vent position.
  3. Disconnect and isolate the negative battery cable.
  4. Separate the mechanism covers (1) from the front glass.

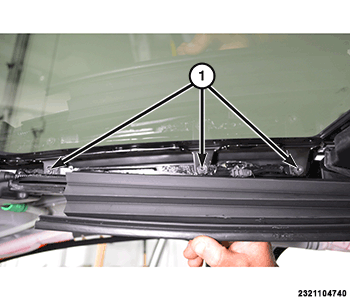

    GC0178157Courtesy of CHRYSLER GROUP, LLC
  5. Remove the fasteners (1) then remove the front glass.
