Removal And Installation: Installation

  1. Seat the liftgate switch into the D-pillar until all of the switch retaining clips are engaged.

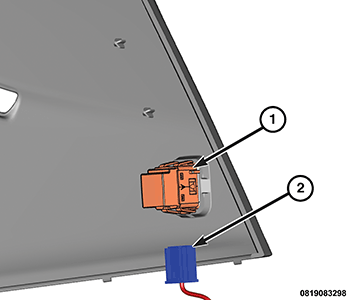

    GC0178028Courtesy of CHRYSLER GROUP, LLC
  2. Connect the wiring harness connector (2) to the liftgate switch (1).
  3. Install the left D-pillar. Refer to PANEL, D-PILLAR TRIM, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable.
