Removal And Installation: Installation

GC0177326Courtesy of CHRYSLER GROUP, LLC

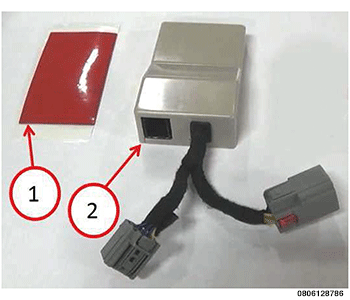

  1. Install the new adhesive pad (1) and the media hub switch (2).
    GC0178189Courtesy of CHRYSLER GROUP, LLC
  2. Connect the vehicle wire harness connector (1).
    GC0177221Courtesy of CHRYSLER GROUP, LLC
  3. Connect the media hub switch wire harness connector (1).
    GC0177863Courtesy of CHRYSLER GROUP, LLC
  4. Connect the media hub wire harness connector (1).
    GC0177450Courtesy of CHRYSLER GROUP, LLC
  5. Install the media hub bezel (1).
  6. Install and tighten the screw in the back of the media hub bezel bin.
  7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
