Removal And Installation: Installation

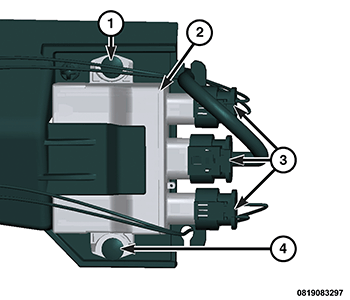

GC0178312Courtesy of CHRYSLER GROUP, LLC
  1. Position the HFEPSD module to the sensor assembly for installation.
  2. Secure the HFEPSD module (2) to the sensor assembly using screws (1, 4).
  3. Connect the wiring harness connectors (3) to the HFEPSD module.

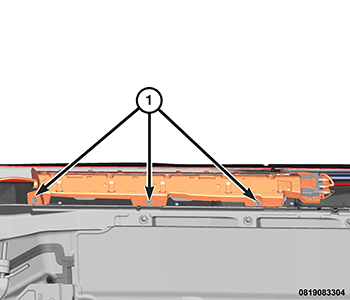

    GC0177978Courtesy of CHRYSLER GROUP, LLC
  4. Install the HFEPSD sensor and module assembly to the vehicle using fasteners (1).

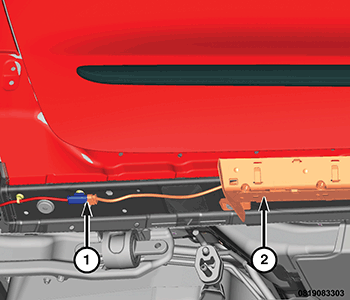

    GC0177208Courtesy of CHRYSLER GROUP, LLC
  5. Connect the wiring harness connection (1) Power Sliding Door Hands Free Entry (PSDHFE) connector.
  6. Install the appropriate power sliding door sill cladding. Refer to CLADDING, BODY, SILL, REMOVAL AND INSTALLATION .
  7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
