Description And Operation: Description

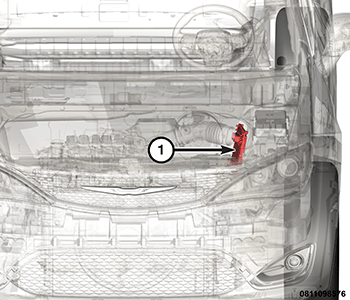

The Powertrain Control Module (PCM) (1) is mounted in a bracket, next to the master cylinder and left strut tower.

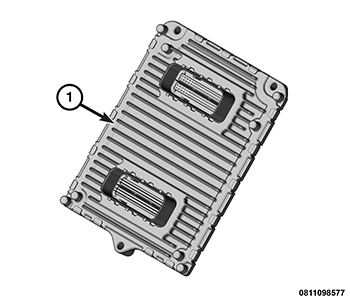

The PCM (1) has two main connectors:
- Gray connector
- Chassis connector (C1)
- Attaches to the PCM and is connected to the dash and body harness through in line connectors
- Cream connector
- Engine connector (C2)
- Attaches to engine harness
