Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

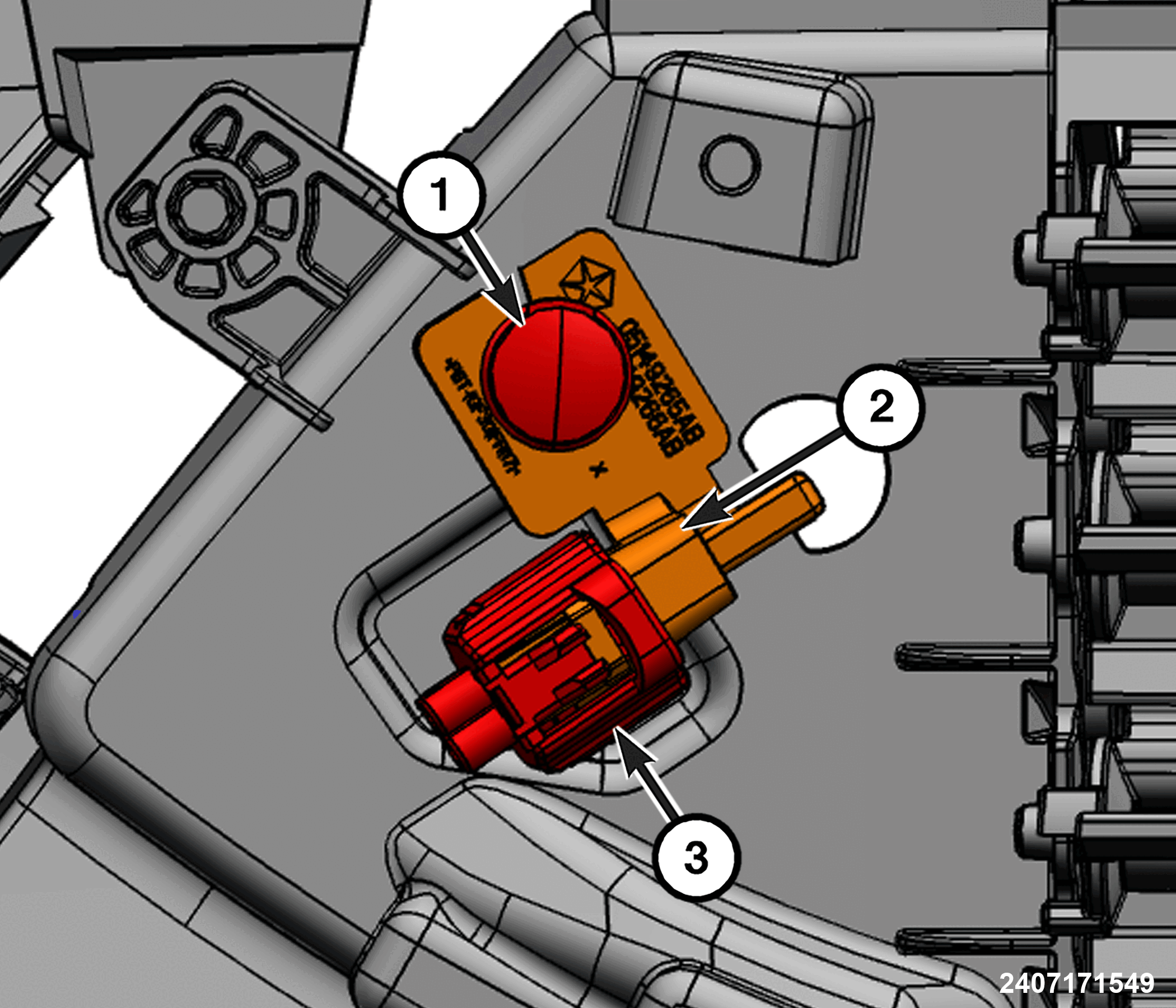

    GC0200317Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector (3) from the ambient air temperature sensor (2).
  4. Remove the push pin (1) that secures the ambient air temperature sensor and remove the sensor.
