Removal And Installation: Installation

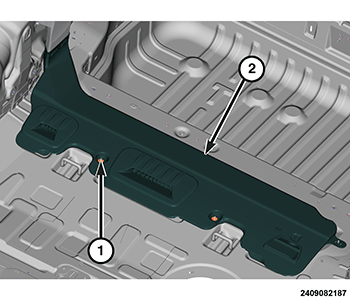

GC0177731Courtesy of CHRYSLER GROUP, LLC
  1. Position the rear floor distribution duct (2) onto the floor.
  2. Install and tighten the floor distribution duct to floor nuts (1).
  3. Install the rear carpet. Refer to CARPET, REMOVAL AND INSTALLATION .

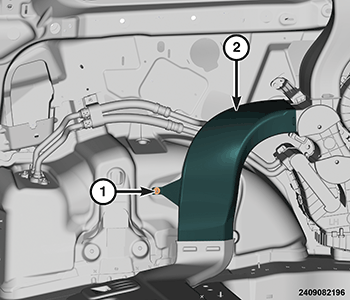

    GC0178160Courtesy of CHRYSLER GROUP, LLC
  4. Install the side duct (2) to the HVAC housing and engage over wheelhouse stud (1).
  5. Install the right rear quarter panel trim. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .
