Removal And Installation: Removal

WARNING:

Review the safety precautions and warnings in this article before performing this procedure. Failure to follow these instructions may result in serious or fatal injury.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

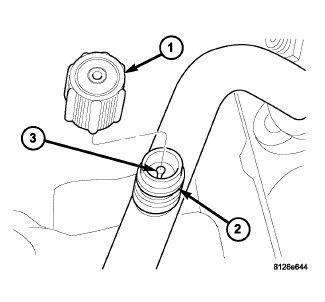

Typical A/C system service port and refrigerant line shown in illustration.

Remove the protective cap (1) from the service port (2).
Recover the refrigerant from the refrigerant system. Refer to PLUMBING, FRONT, STANDARD PROCEDURE .
Using a Schrader-type valve core tool, remove the valve core (3) from the service port.
Install a plug in or tape over the opened service port(s).
